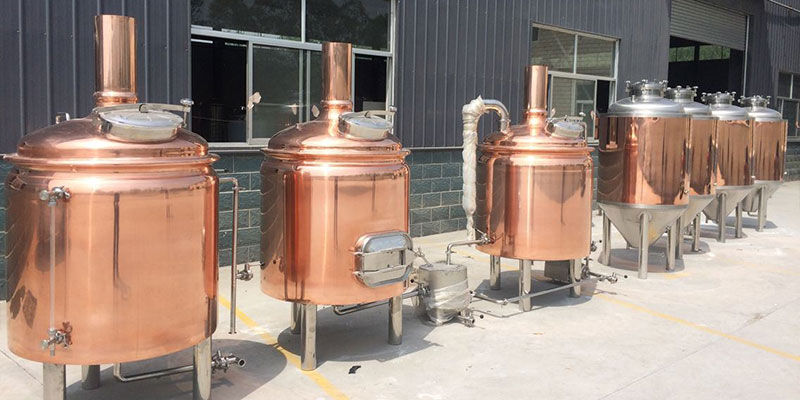

Brewhouse common mechanical figuresBrewhouse common mechanical figures |
Mechanical figures | Overall dimension | according to layout design |
Material | sanitary stainless steel SUS304 |
Wall thickness | 3mm (inner) / 2mm (outer) |
Welding | 100% TIG/GTAW |
Interior finish | overall polishing to 0.2~0.4 μm without dead corner |
Head | dish head, 3mm, conical head available |

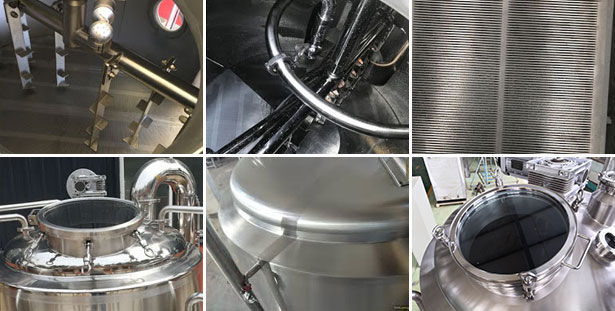

Manhole | sanitary glass manhole on top, with led light |
Temperature sensor | PT100 sensor (except lauter tank) |
Insulation | Polyurethane, 80mm |
CIP | 360° spray revolving CIP ball |
Legs | 3pcs SUS304 heavy duty legs with leveling pad |
Pre-shipment test | 48 hours motor performance and pressure/leakage test |
