Product Description

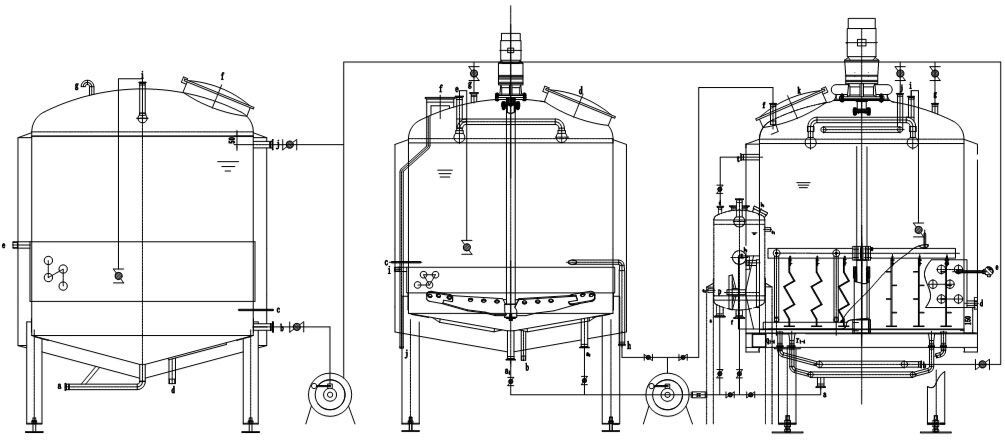

II. Brewhouse

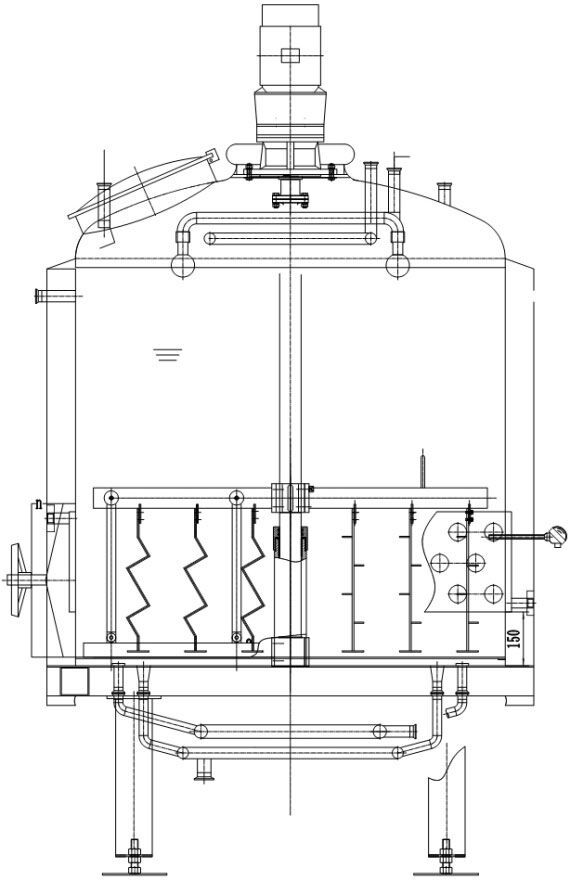

Mash/Lauter tank | ||
1 | Capacity | 10BBL + 25% head space |
2 | Overall dimension | Φ1160*2400(H)mm (adjustable) |
3 | Material | sanitary stainless steel SUS304 |
4 | Wall thickness | 2mm outer/3mm inner |
5 | Welding | 100% TIG/GTAW |
6 | Interior finish | overall acid pickling without dead corner |
7 | Insulation | rock wool, 80mm |
8 | Head | dish head, thickness 3mm, conical head available(with insulation) |

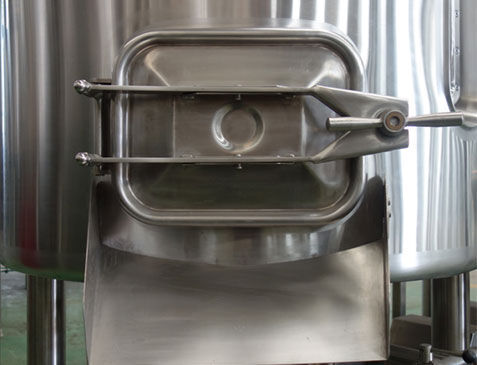

9 | Manhole | sanitary SUS304 manhole on top |

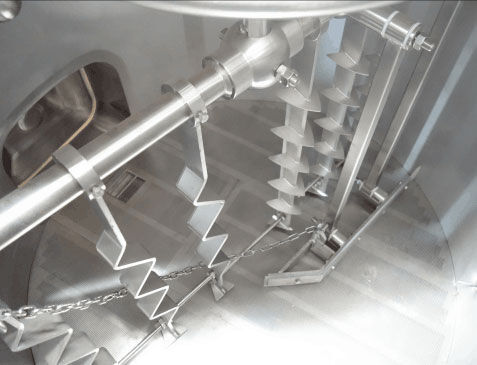

10 | Rake ① | top motor(1.5KW) rake with VFD control, auto cleaning plate |
11 | Sieve | false bottom, dismountable sieve. |

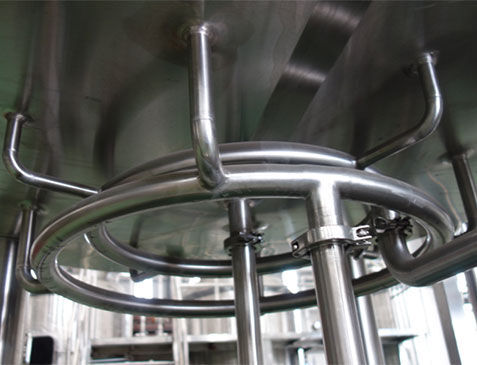

12 | Bottom ports ② | wort collecting rings and anti rinser rings, |
13 | Grain remove ③ | grain gate, auto grain removal pad |

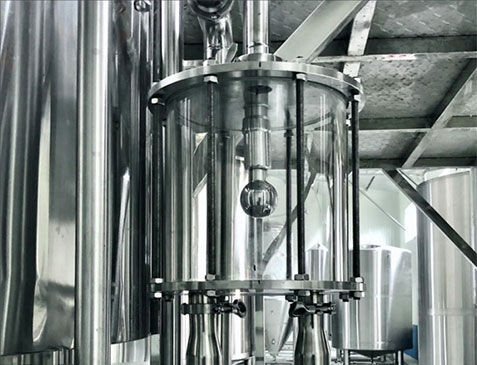

14 | Wort grant ④ | 10L glass wort grant with CIP ball |

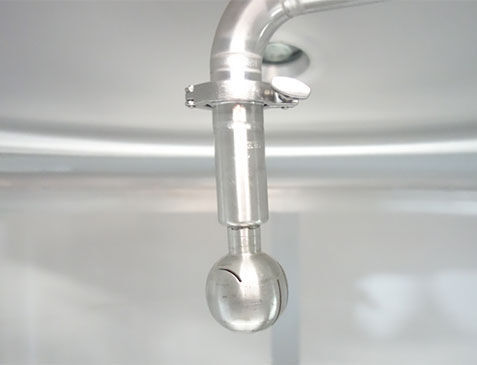

15 | CIP | 2*360° spray revolving balls |
16 | Legs | 4pcs SUS304 heavy duty legs with leveling feet pad |
17 | Pre-shipment test | 48 hours pressure/leakage test |
Boiling/Whirlpool tank | ||
1 | Capacity | 10BBL + 25% head space |
2 | Overall dimension | Φ1160*2400(H)mm (adjustable) |
3 | Material | sanitary stainless steel SUS304 |
4 | Wall thickness | 2mm outer/3mm inner/5mm bottom |
5 | Welding | 100% TIG/GTAW |
6 | Interior finish | overall acid pickling without dead corner |
7 | Insulation | rock wool, 80mm |
8 | Head | dish head, thickness 3mm, conical head available(with insulation) |
9 | Manhole | sanitary SUS304 manhole on top |

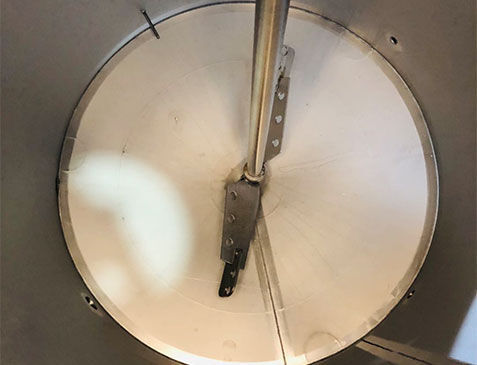

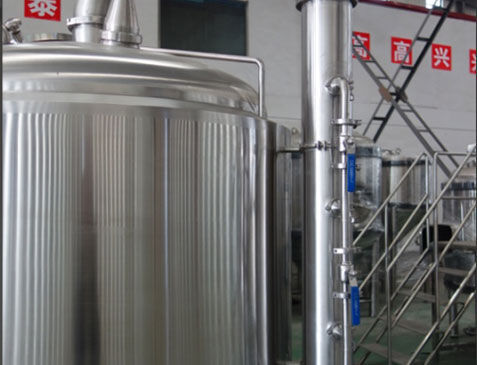

10 | Stirrer ① | top motor(1.5KW) stirrer with VFD control |
11 | Heating | steam jacket on body and bottom, separately controlled |
12 | Venting ② | venting pipe with spray valves |

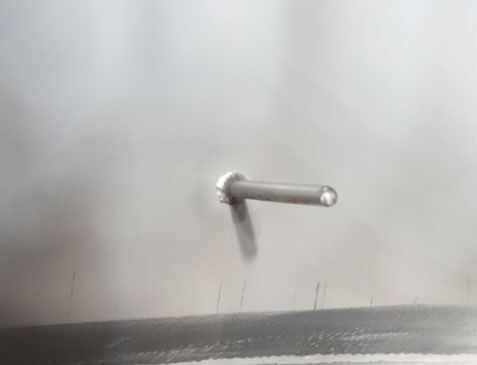

13 | CIP ③ | 360° spray revolving balls |
14 | Temperature sensor ④ | thermowell for high accuracy temperature sensor(PT100) |
15 | Legs | 4pcs SUS304 heavy duty legs with leveling feet pad |
16 | Pre-shipment test | 48 hours pressure/leakage test |
Hot liquor tank | ||
1 | Capacity | 15BBL + 25% head space |
2 | Overall dimension | Φ1160*2400(H)mm (adjustable) |
3 | Material | sanitary stainless steel SUS304 |
4 | Wall thickness | 2mm outer/3mm inner/5mm bottom |
5 | Welding | 100% TIG/GTAW |
6 | Interior finish | overall acid pickling without dead corner |
7 | Insulation | rock wool, 80mm |
8 | Head | dish head, thickness 3mm, conical head available(with insulation) |
9 | Manhole | sanitary SUS304 manhole on top |
10 | Heating | steam jacket on body and bottom, separately controlled |
11 | Temperature sensor | thermowell for high accuracy temperature sensor(PT100) |
12 | CIP | 360° spray revolving balls |
13 | Legs | 4pcs SUS304 heavy duty legs with leveling feet pad |
14 | Pre-shipment test | 48 hours pressure/leakage test |

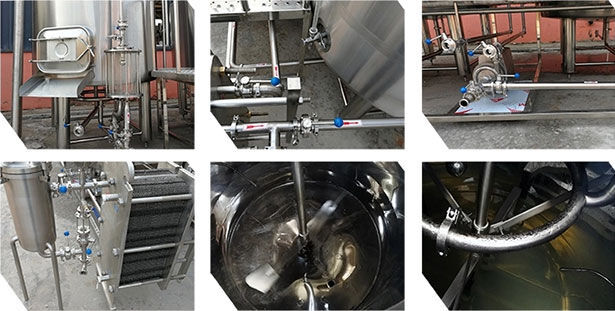

Assorted equipment for brewhouse
Assorted equipment for brewhouse | ||

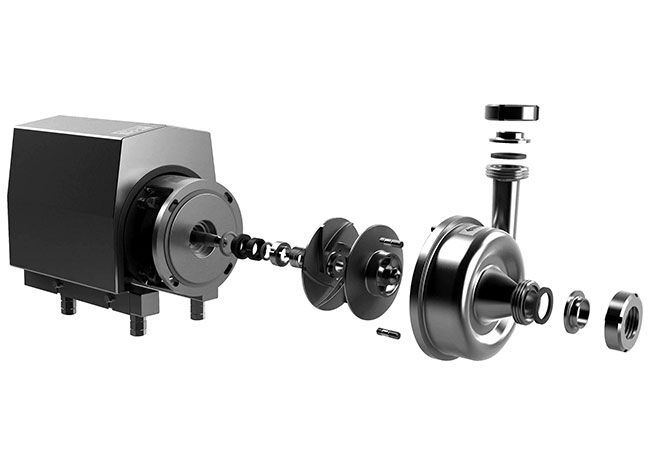

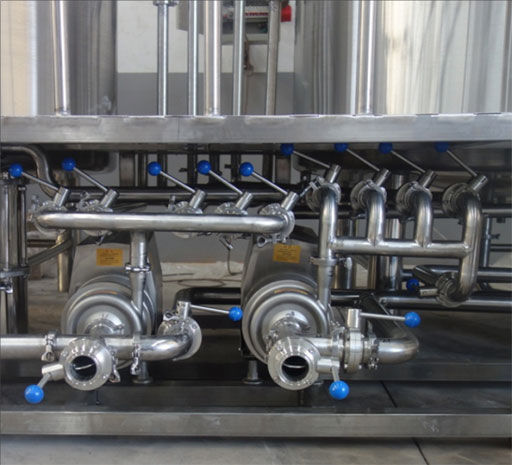

Centrifugal pump2 sets | Capacity | 5T/H |
Power | 1.5KW, VFD control(lauter pump) | |
Material | SUS304 | |
Diameter | inlet Φ51, outlet Φ38, tri-clap connection | |

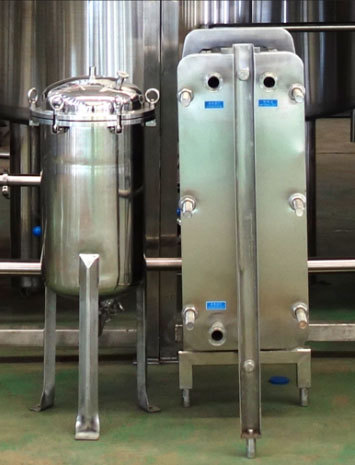

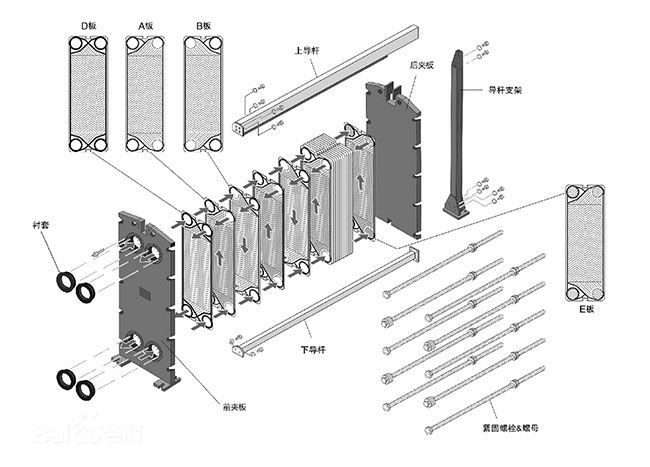

Plate heat exchanger1 set | exchange area | 8㎡ |
Stage | tow stage(cold water+glycol)6 ports | |
Material | SUS304 | |
Diameter | glycol ports G3/4,water inlet G1, outlet Φ32 clap, Φ38 | |
Yeast tank1 set | Capacity | 20L |
Material | SUS304 | |
Wort grant1set | Capacity | 10L |
Material | SUS304 and sanitary glass | |
Brewhouse piping1 set | Diameter | Main pipe Φ38, other pipe Φ32 |
Material | SUS304, auto TIG welding | |
Platform1 set | Material | SUS304 |
Other | skid resistance |
